Felt Rings - Pack of 10

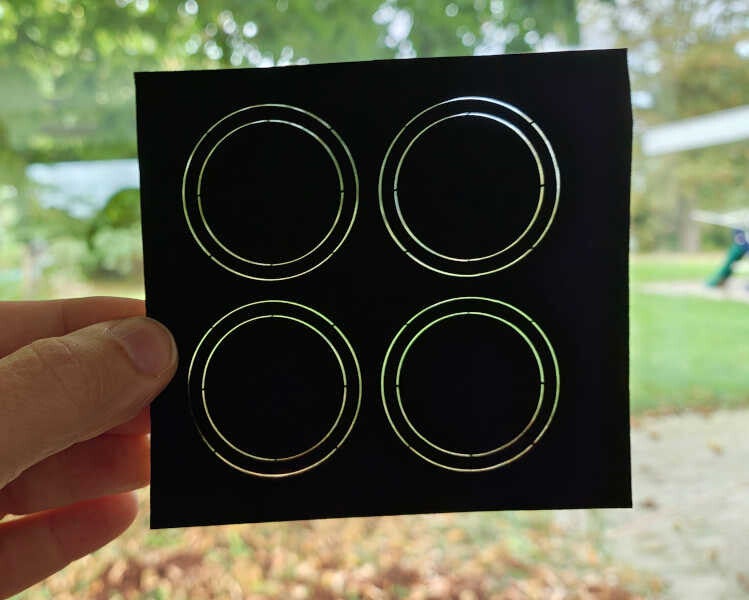

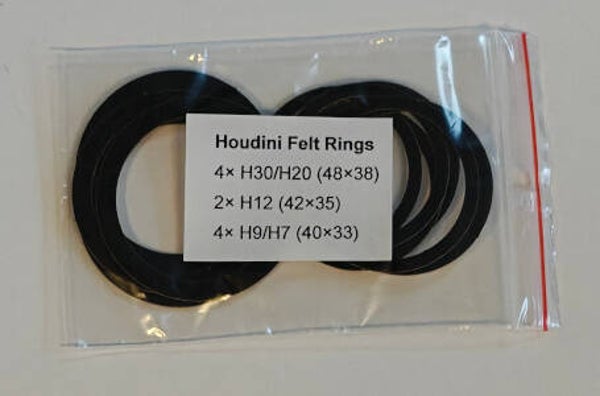

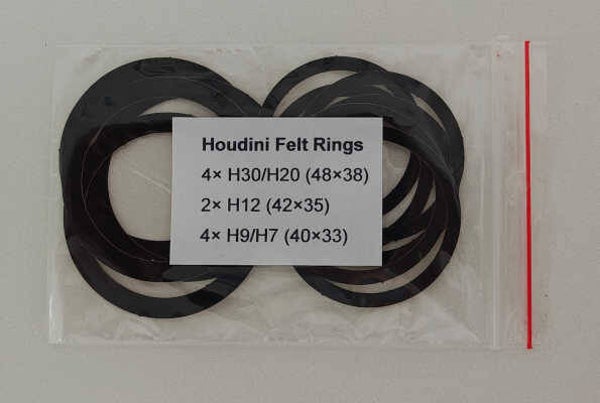

A pack of 10 rings of 0.5 mm self-adhesive black felt, laser-cut to shape. Contains 4 rings for H30/H20, 2 rings for H12, and 4 rings for H9/H7.
Price includes VAT. For non-EU customers 20% VAT will be deducted at checkout.
Shipping Info
If you are ordering from outside the EU and your order consists only of one or more packs of felt rings, please contact us for a coupon code for free shipping. The felt ring packs will then be sent in a small envelope by regular mail.
Description
Replacing the rubber eyecup with a simple felt ring can increase the effective eye relief by about 1 mm by allowing glasses to rest closer to the eye lens. For observers who are only just short of being able to see the full field of view, this can make a noticeable difference. The felt also protects the glasses from direct contact with the metal housing of the eyepiece.

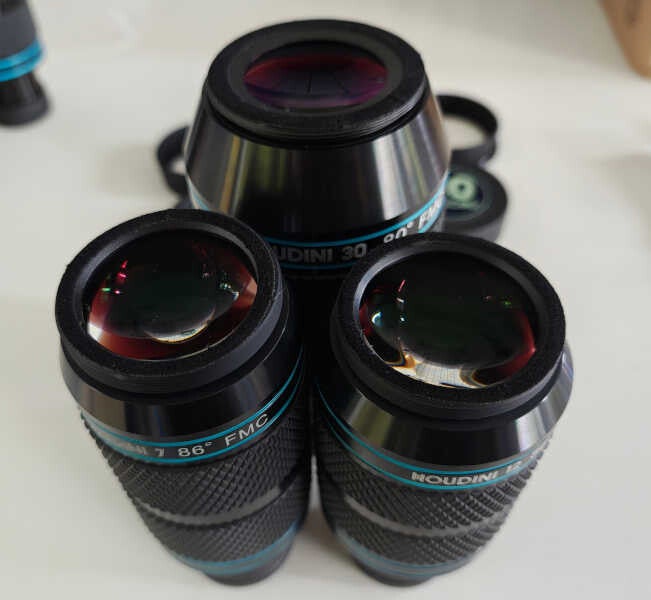

Three different ring sizes are used for the Houdini eyepieces:
-
H30 / H20: 48 × 38 mm
-
H12: 42 × 35 mm
-
H9 / H7: 40 × 33 mm

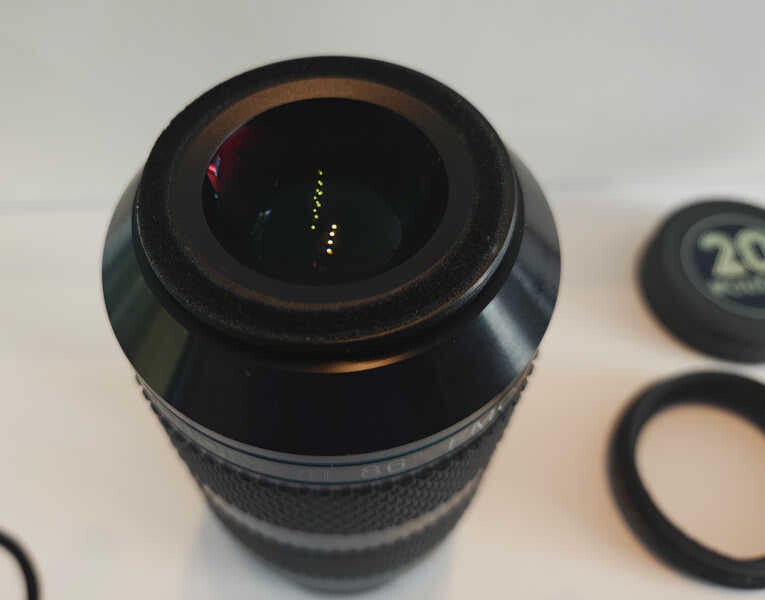

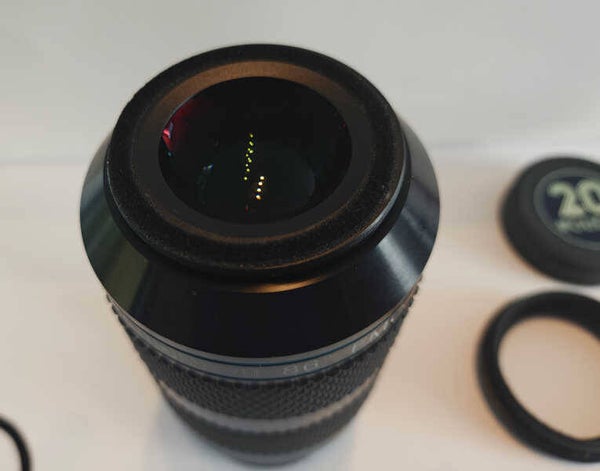

Installation is straightforward. Remove the rubber eyecup and clean the surface if necessary. Peel off the backing paper from the self-adhesive felt ring and carefully stick the ring onto the flat surface around the eye lens. We have found that the easiest way to remove the backing paper is to lift a corner with the tip of a craft knife.
For more details, see the blog post Felt Rings for Improving Effective Eye Relief.
